INSTALLATION USER GUIDE

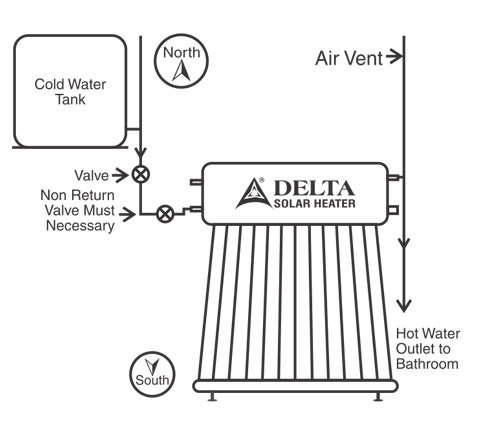

Overhead tank water feeding system

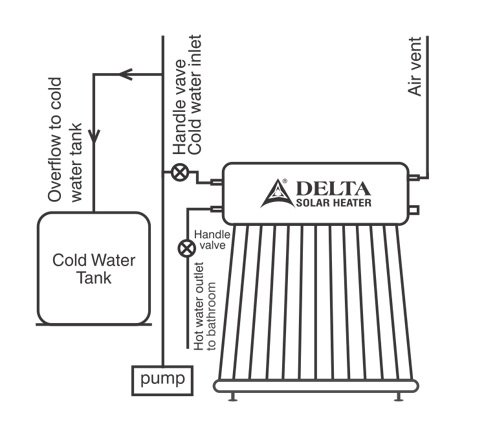

Manual water feeding system

Area Occupied on Terrace by the System
CAPACITY IN LITER	OCCUPIED AREA BY Solar System (NS*EW) In Feet	CAPACITY IN LITER	OCCUPIED AREA BY Solar System (NS*EW) In Feet
100	7 x 3.5	300	7 x 8.5
150	7 x 5	400	8 x 9
200	7 x 6.5	500 (Manyfold System)	9 x 14
250	7 x 7.5	600 (Manyfold System)	10.5 x 14

More than 300 lit. system capacity poweder coated angle stand provided
